NK 9000

NeuroKom® IP system NK 9000Art.-Nr.:

NK 9000

NeuroKom® IP system NK 9000Art.-Nr.:
  • Intercom system works simply in the network
  • Neural communication for voice - data - and more
  • Self-forming intelligence
  • Without a control centre, server, cloud or licences
  • Up to 9,000 NeuroUnit® units
  • No "single point of failure"
  • SIP-compatible

Features

At Gehrke, intercom simply works without a server. The intercom stations already do this.

NeuroKom® IP works with its own real-time operating system and utilises common network protocols and network technology security features. This makes the applications extremely secure and reliable.

NeuroKom® technology is based on artificial neural networks.

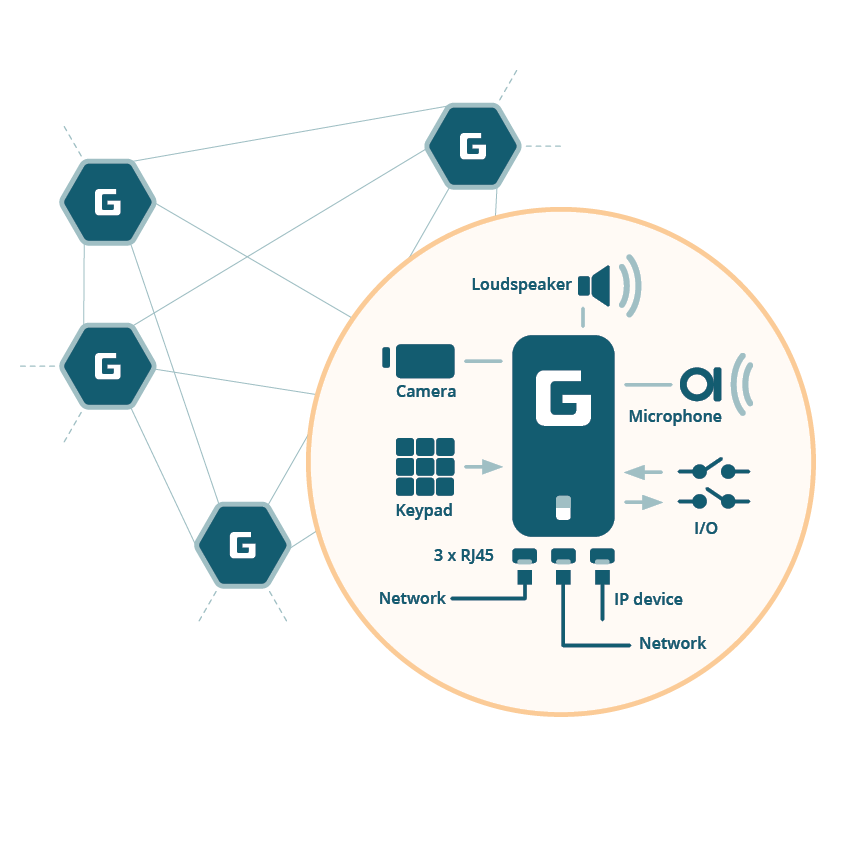

NeuroKom® IP technology dispenses entirely with centralised components. The intelligence of the system increases with the number of units in the network, the NeuroUnit® components. These are intelligent network participants that can realise all the capabilities of the NeuroKom® IP principle even in the smallest combination (2 units).
A total of up to 9000 NeuroUnit® units can currently work together in a network, each of which can take on different tasks and deal with the respective location.
All the familiar features of intercom solutions, as well as telecommunications and network solutions, are available.

NeuroKom® IP eliminates the media discontinuity between telecommunications, intercom and network technology. This means that far more flexible solutions are possible than in the past.

It is particularly important to have a simple and clearly structured administration option and interface for everyone. NeuroKom® IP combines these requirements with the security requirements of network administrators and reduces the time and effort required for system training to an absolute minimum.

Attributes

Table Caption
Communication protocolsNKKPF, SIP, IAX2, H 323
Possible voice transmission codecsG 711, G722, PCM 16, PCM 32, PCM 48
Voice transmission ratesSpeech: 3.4 kHz Speech: 7 kHz Full audio: 8 kHz (opt.) Full audio: 16 kHz (opt.) Full audio: 24 kHz (opt.)
Management protocolsSNMP, OPC, NKMP
AF power per unit0.8 watts - 40 watts, depending on equipment
Operating voltage per unitPoE, PoE+
System expansionup to 9,000 NeuroUnit units
