WC emergency call for clear communication in an emergency

Emergency call points for barrier-free sanitary facilities

Real safety means being heard, not just sounding the alarm. Our barrier-free emergency call stations for toilets, showers and washrooms enable clear two-way communication instead of just an alarm. People seeking help can thus not only draw attention to themselves, but also communicate directly what has happened. This creates trust, saves time and ensures targeted help in critical moments. The emergency intercom systems fulfil the standards for barrier-free communication - and go beyond them. They are therefore a great help for wheelchair users and people with impaired vision and hearing in public buildings and businesses.

Barrier-free emergency call intercom system

  • Two-way communication with emergency call centre, concierge, gate, etc.
  • Acoustic and visually recognisable reassurance signal
  • Automatic reassurance text
  • Call light signal outside the sanitary room
  • Acoustic signal outside the sanitary room
  • Equipped with Braille
  • Conversation without any operating action
  • Clear communication even with hearing impaired module
  • Pull cord button
  • Switch-off/presence button
  • Resistant to disinfectants
  • Power supply via Cat cable
  • Power indicator and microphone light

Product overview

Are you a planner, system installer, project manager or purchaser and need someone to talk to who is already well versed in the subject?

Accessible emergency communication at a glance

Intercom system with Braille
The emergency intercom is equipped with Braille. It is easy to operate and makes it easier for people with visual impairments to use in an emergency.

Emergency intercom for hearing impaired and hearing aid users
The integrated hearing-impaired module in the emergency call station improves the intelligibility of voice transmissions. The sound is transmitted by induction. People with impaired hearing and hearing aid users understand the voice announcements clearly and distinctly. Self-explanatory pictograms also make operation easier.

Calming the person in distress
Acoustic signals and automated voice announcements reassure the person making the call and signal the function of the emergency call station.

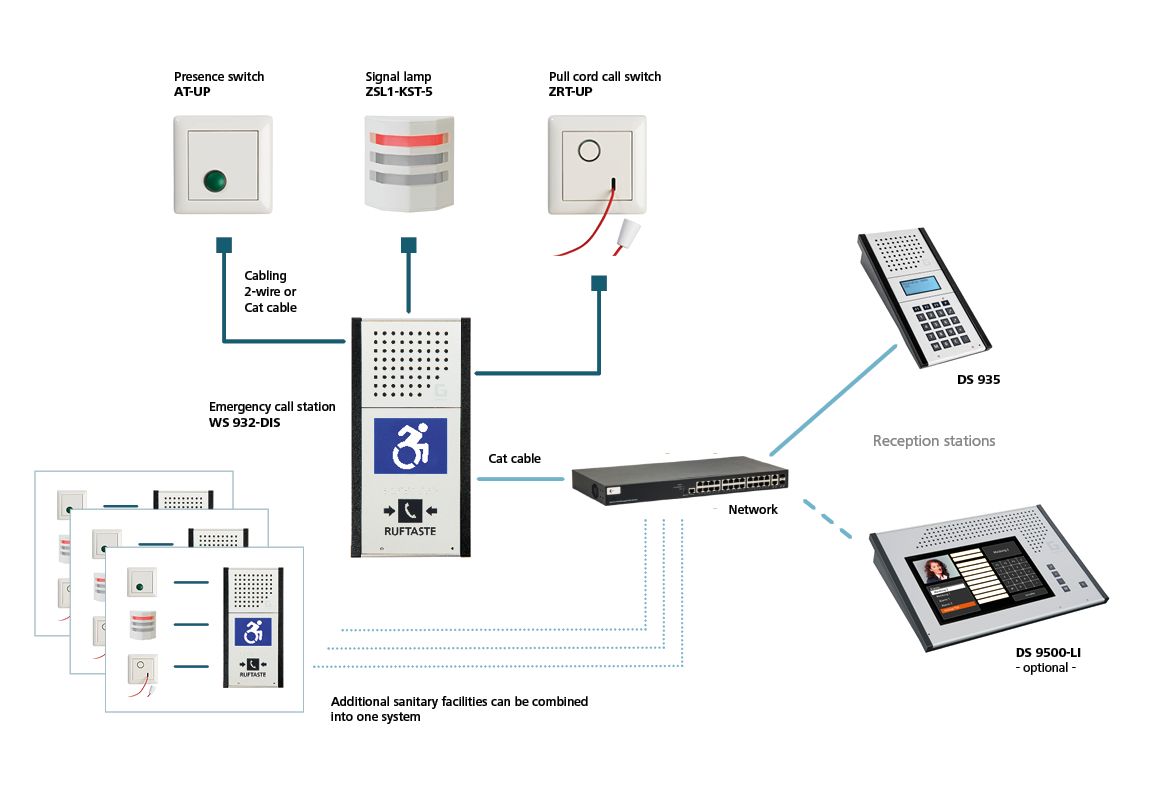

Integration with intercom system

The barrier-free emergency intercom system for washrooms can be easily integrated into an intercom system for buildings. It is usually connected to a workstation, the concierge, the security service or another control centre. From there, the emergency call can be answered directly with a hands-free call to clarify the situation, calm down and initiate measures. If necessary, several receivers can be addressed simultaneously.

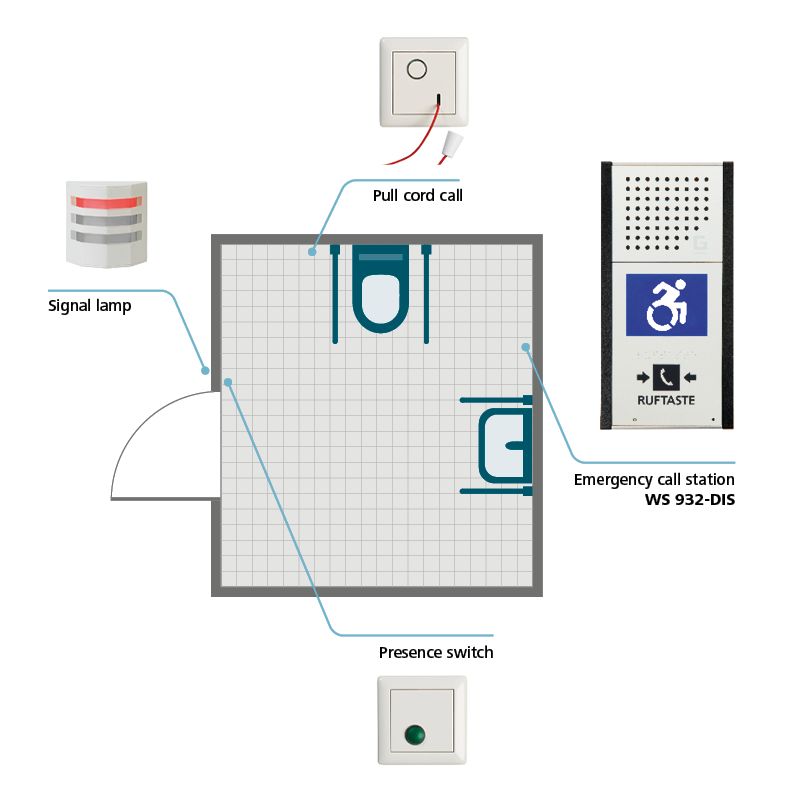

Installation of the emergency intercom system

Material list WC emergency call set

  • 1 x WS 932-1-DIS emergency call station
  • 1 x DS 935 receiver intercom station
  • 1 x ZSL1-KST-5 signalling light
  • 1 x AT-UP presence switch
  • 1 x pull-cord button ZRT-UP

Options:

  • Receiver intercom DS 9500
  • Decorative strips in a different colour ZL 900
  • Additional call buttons RT-UP
  • Acoustic signalling device for SIG-1 signal light
  • Switch if required - as required

Fail-safe communication with NeuroKom® IP

The barrier-free emergency call points are based on the NeuroKom® IP principle. This means that the emergency intercom system is a so-called NeuroUnit, which is integrated into an intelligent network of IP intercom stations without a central control unit. Each NeuroUnit works with its own real-time operating system. This makes the applications fast, extremely secure and reliable - the most important prerequisite for an emergency call system.

Find out more about neural IP intercom building communication

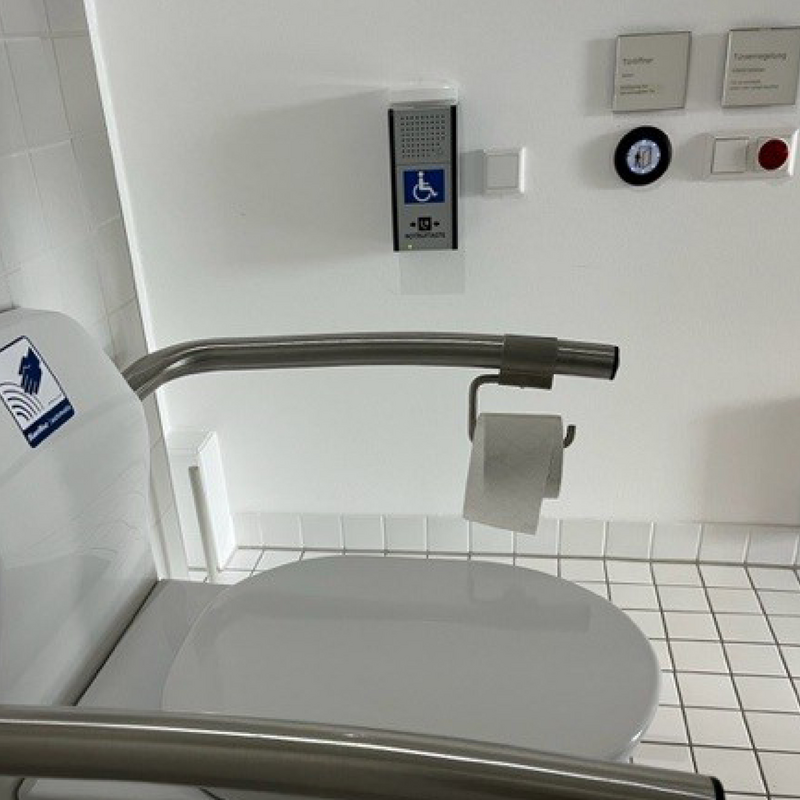

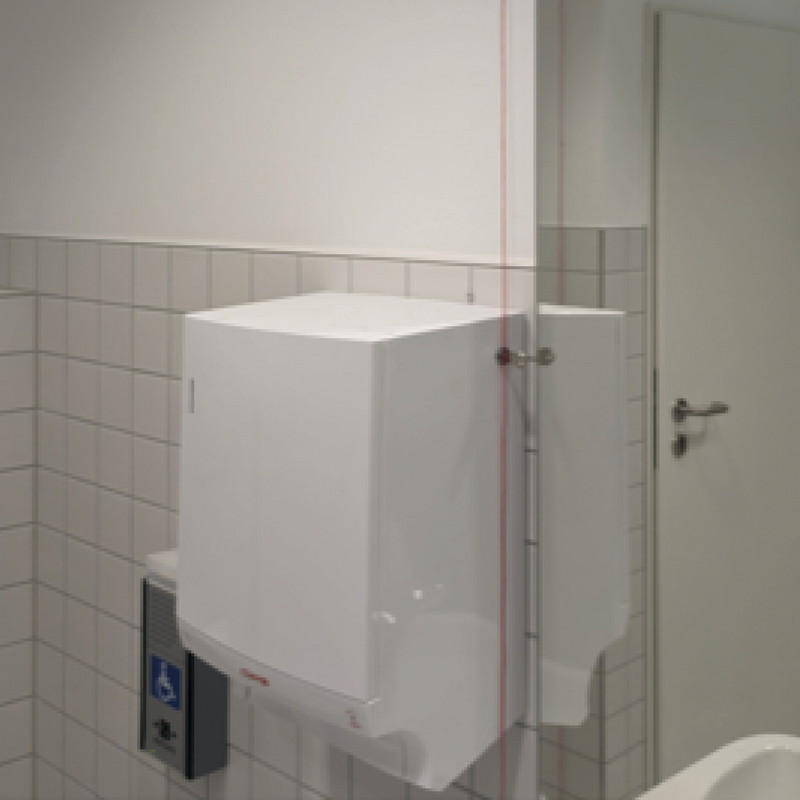

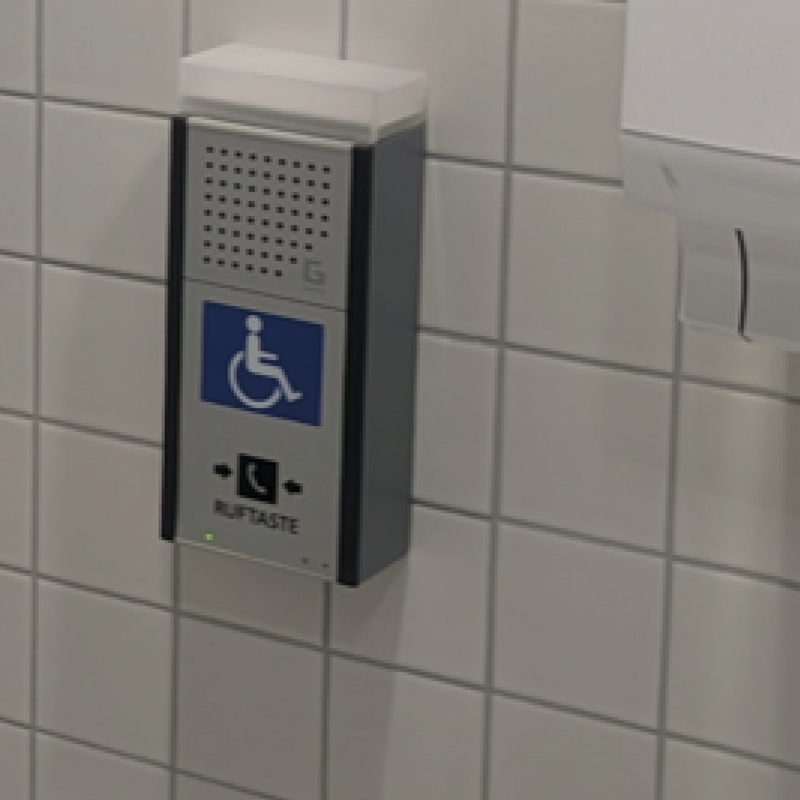

Impressions from the field
